What Makes Aluminum Hydroxide Essential for Fire-Safe Phenolic Foam?

You’re producing high-quality phenolic foam for insulation, but meeting strict fire safety standards is a constant challenge. Adding the wrong filler can compromise the foam’s structure and performance, leading to product failure.

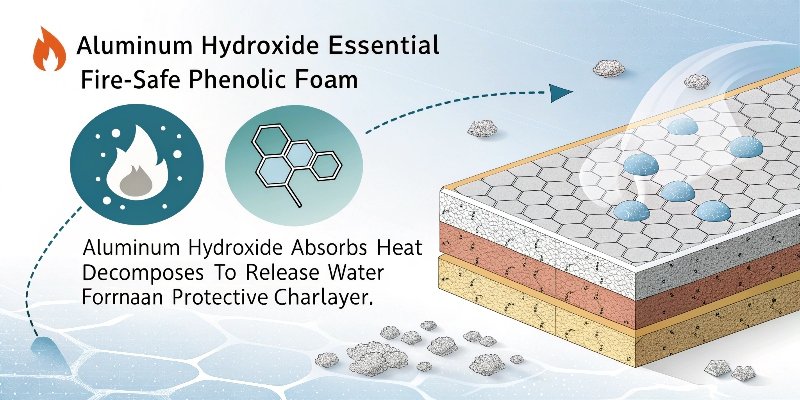

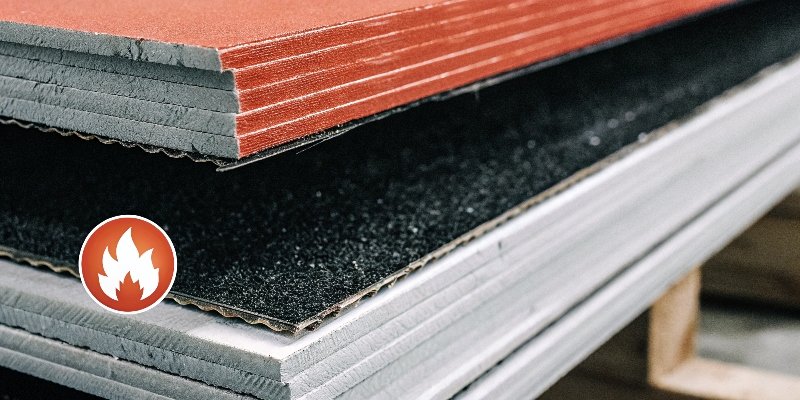

Aluminum hydroxide (ATH) is essential for fire-safe phenolic foam because it works with the foam’s natural charring ability. It releases water vapor to cool the material and suppress smoke, significantly enhancing the foam’s overall fire rating in a non-toxic way.

As a manufacturer of ATH, I’ve seen its use in phenolic foam grow substantially. It’s a perfect example of how choosing the right functional additive¹ can elevate a good product to a great one. Phenolic foam is already known for its fire resistance², but when you add aluminum hydroxide, you unlock a new level of safety and performance.

Let’s explore why this combination is so effective and how it helps you create a superior, safer product that meets the toughest market demands.

Why is exceptional fire resistance critical for phenolic foam boards?

Your customers rely on phenolic foam for its superior insulation properties. But in a real-world application like a hospital or a high-rise building, a fire can spread quickly, making material choice a matter of life and death.

Exceptional fire resistance is critical because phenolic foam is used in high-value construction where safety is paramount. Its low flame spread and low smoke emission properties are key selling points that are mandated by strict international building codes.

Phenolic foam is not just another insulation material; it’s a high-performance solution. Unlike many other plastic foams, it has an inherently good reaction to fire. When exposed to flames, it doesn’t melt or produce burning droplets, which can spread a fire. Instead, it chars, forming a non-flammable layer that protects the material underneath. However, to achieve the highest fire safety classifications (like Euroclass B³), this natural ability needs a boost. This is where additives become crucial. For a distributor like Mr. Park, who supplies materials to various construction projects⁴, being able to guarantee a top-tier fire rating is not a feature—it’s a necessity.

Achieving that top rating is what protects lives and ensures compliance.

How exactly does aluminum hydroxide enhance phenolic foam’s fire safety?

You know phenolic foam is naturally good against fire, so why add anything? It’s easy to think any simple filler would do, but this can actually weaken the foam and its fire performance.

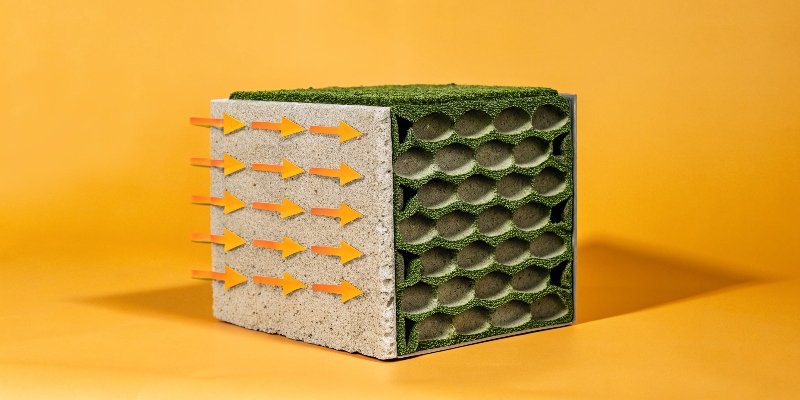

Aluminum hydroxide actively enhances fire safety by providing a three-part defense. It absorbs heat, releases water to cool the foam and dilute gases, and reinforces the char layer, working in concert with the foam’s natural properties.

This isn’t just about filling space; it’s about adding functionality. From our factory in Henan, we provide ATH engineered for this specific purpose. The key is how it works together with the phenolic resin. When a fire starts, the ATH doesn’t wait for the foam to fail. At around 200°C, it begins its work through endothermic decomposition⁶.

First, it absorbs a large amount of heat energy, acting as a heat sink that keeps the foam cooler for longer. Second, it releases harmless water vapor, which serves two purposes: it further cools the foam and it dilutes the flammable pyrolysis gases, making them less likely to ignite. Finally, the aluminum oxide left behind integrates into the phenolic char, making it stronger and more protective. This synergy is particularly valuable for smoke suppression. While phenolic foam already produces less smoke than other insulations, the water vapor from ATH dilutes it even further, which is a critical advantage during an evacuation. This multi-action defense is what elevates the foam’s fire rating to the highest levels.

What grade of ATH is best for phenolic foam boards?

You’re convinced that ATH is the right choice, but you see many different grades available. Choosing one with the wrong particle size could damage the foam’s delicate cell structure, ruining its insulation value and wasting an entire batch.

For phenolic foam boards, a fine particle size aluminum hydroxide (typically 1-3 microns D50) is best. A non-surface-treated grade is often sufficient, ensuring excellent dispersion without negatively affecting the foam’s R-value or structural integrity.

This is a detail we pay close attention to during production. The goal is to get the fire-retardant particles⁷ inside the foam’s structure without creating defects. If the particles are too large, they can rupture the thin cell walls, which are essential for trapping air and providing insulation. This would lower the R-value⁸ and weaken the board. Therefore, a fine powder is non-negotiable.

Surface treatment is another consideration. For many plastic applications, we recommend surface-treated ATH to improve bonding with the polymer. However, in foam, the ATH acts more as a functional filler than a reinforcing agent. An uncoated, fine-grade ATH disperses very well in the phenolic resin before foaming and provides the necessary fire retardancy in the most cost-effective way. For a buyer focused on sourcing efficient materials, choosing the right grade means getting the performance you need without paying for features you don’t.

Conclusion

Aluminum hydroxide is a key additive for phenolic foam. It boosts the foam’s inherent fire resistance and smoke suppression abilities, ensuring products meet the highest safety standards for modern construction.
